SlideSnap X1

$2,995.00

 Due to supply shortages. The SlideSnap X1 is currently out of production. See the SlideSnap Pro

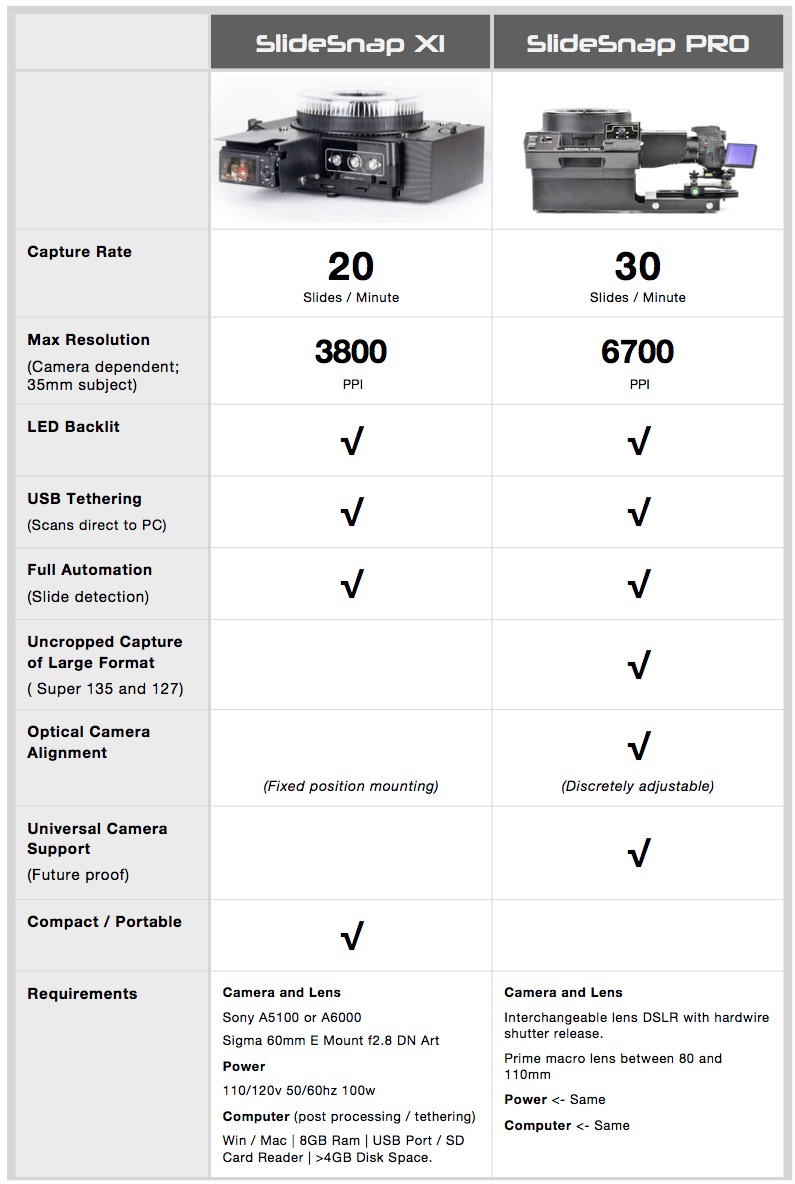

The SlideSnap X1 is our latest generation rapid slide scanner; Bold little brother to the SlideSnap Pro.  It Employs a high optical resolution, large sensor Sony digital camera as its imager to autonomously capture up to 20 slides per minute.

Captures true to life digital copies of slides as JPG or Sony RAW.

Compatible with all standard Kodak slide trays (80/140ct). (Or a loose stack of up to 40 slides with optional Stack Loader)

Features

  • Fast : Cycle time of about 3 seconds per slide.
  • High Quality: 3800PPI scans from a large sensor Sony mirrorless camera.
  • Tethering : Save time by capturing straight to your PC.
  • Portable : Cable managed, small footprint and built in camera protection.
  • Simple to Operate : Power on and press go with interactive control panel.
  • Automated : No babysitting. Stops at the end of a tray or in the event of a jam.

Links

Note: Does not include camera or lens by default. Available as turnkey option.

Availability : Discontinued.

Out of stock

SKU: ssx1 Categories: ,

Description

Required Equipment

  1. Compatible Sony Digital Camera | A5000, A5100*, A6000, A6300, A6500 (A5100 preferred model, body only retails $350-500 @ Amazon https://goo.gl/I5QjQZ )
  2. Sigma 60mm F2.8 EX DN for Sony SE (Retails ~$200-250 : @Amazon https://goo.gl/ysoV1n )

What’s Included

(Camera + Lens Sold Separately or available below as a bundle)

  • SlideSnap X1 Projector Core
  • LED Backlight
  • G2 Control Panel
  • Scanning Lens Kit (For 60mm Sigma)
  • 80 Capacity Slide Tray
  • Accessory Kit (4k Resolution Target Slide, 5pc Dry Erase Titling Slides, 10x Slide Loupe, Magic Wand)
  • Dust Cover
  • SlideSnap Pro Auto Cropper Application (Windows / Mac)
  • 1 Year Limited Manufacturer Warranty and Support
  • +Camera Shield / Hood
  • +Sony Power Pack (with built in power supply)
  • +Sony USB SnapTether Cable
  • +BatchCrop Application License

Specifications

  • Optical Resolution : (With Sony A5100) 24MP [Effective 3900 PPI for 35mm slides]
  • Capture Rate : 3.5s Per Slide (Automatic feed)
  • Compatible Slide Formats:  135, 110, Half 135, 126. With cropping: 127. (Slides up to 2”x2”x1/8”)
  • Compatible Carriers / Trays : Kodak 80ct, 140ct and Stack Loader (40ct) (Not compatible with linear trays or 100 capacity Sawyer trays)
  • Image Format: JPG or ARW (Sony Raw)
  • Camera Power: (Battery or Power supply included with Complete kit)
  • Storage: Capture directly to SD Card or transfer via USB 2.0 port with SnapTether
  • Image Focus: Automatic
  • Light source: 2W 5000k (Daylight Balanced) LED Module
  • Power Requirements : 110-125v 60hz 1A (International transformer available for use outside U.S)
  • Dimensions : 16x15x7 (w/o tray) 18x18x12 (Packed)
  • Weight : 17lb (Complete + Tray + Camera) 22lb (Packed)

Additional information

Weight 22 lbs
Dimensions 13 × 13 × 10 in
